HAYWARD WG1030AV VGB 8″ ROUND MAIN DRAIN W/ POOL SAFETY COMPLIANCE
Suction Outlets – Compliance To Pool Safety Act ASME/ ANSI and VGB.
Hayward’s new Low Velocity suction outlets are specifically designed for applications with requirements limiting the maximum flow velocity to 1.5 feet per second. In addition, Hayward’s High Flow covers have some of the industry’s highest ASME approved flow rates. Each size and flow design cover retrofit to existing Hayward frames and are designed for an extensive 7 year life span. All Hayward WG Series suction outlets and replacement covers are VGB compliant and are tested to ASME A112 19.8b-2009 and ANSI/APSP-16 standards as well as meeting CPSC requirements.

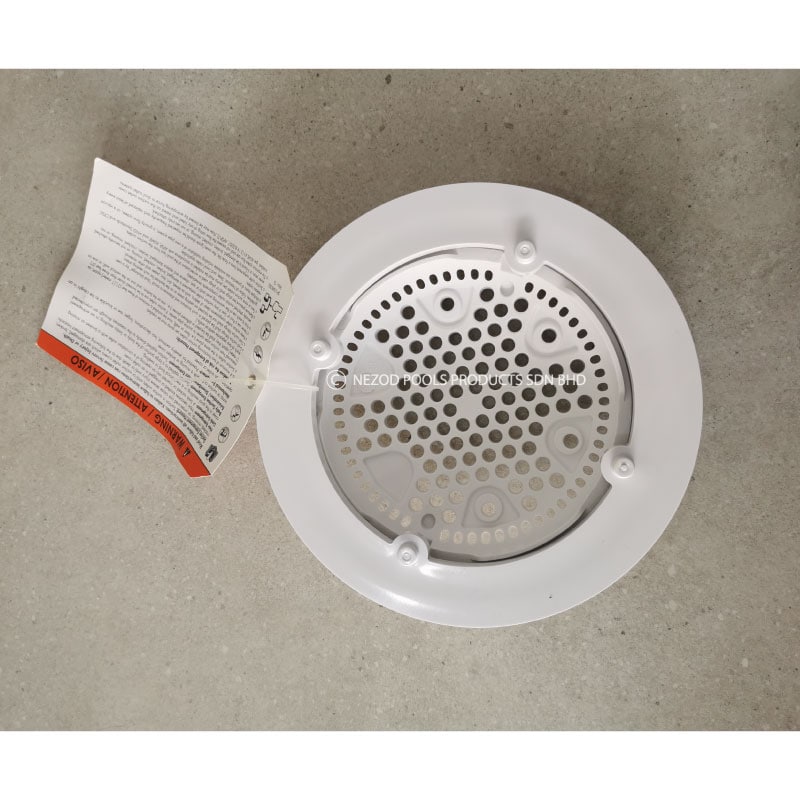

* Includes Cover, Inner and Outer Frame.
* 200mm diameter round residential Main Drain. (White color)
* Flow rate of U125USgpm (floor) / 72USgpm (wall) of suction and delivery flow.
* Compliant with the ASME/ANSI A112.19.8 – 2007 standard and the Virginia Graeme Baker Pool and Spa Safety Act.

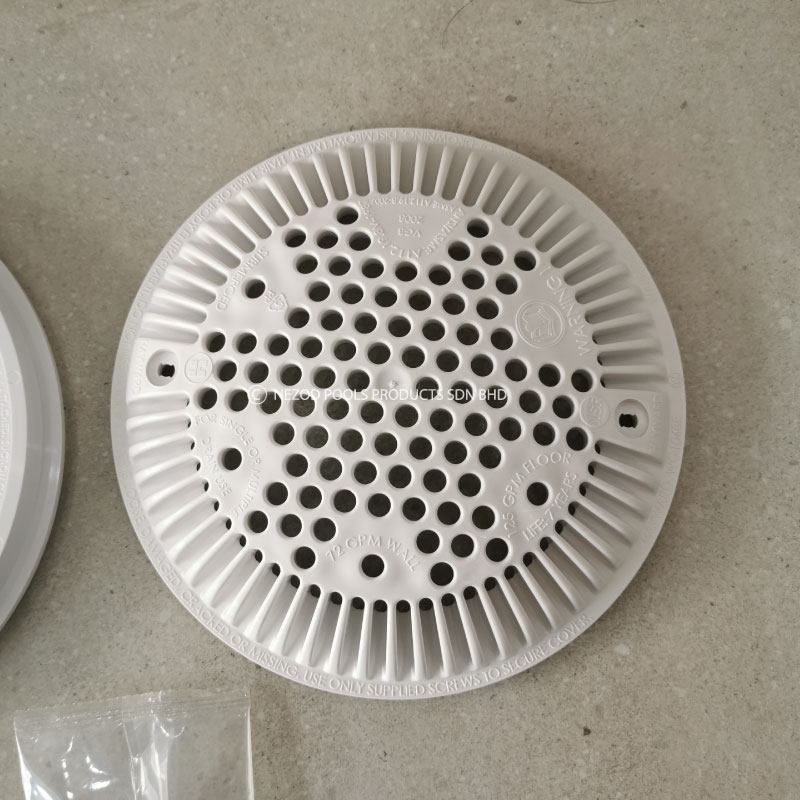

* Anti-vortex grate cover.
* Approved for use in commercial installations.
* Original package comes with two sets of WG1032. Single set do not have original packaging.
* Compliance to ASME/ANSI and VGB Pool Safety Standard : A minimum of two main drains per pump must be installed. Suction outlets in the same plane (i.e. floor or wall), must be installed a minimum of three feet (3’) [1 meter] apart, as measured from pipe center to pipe center.
