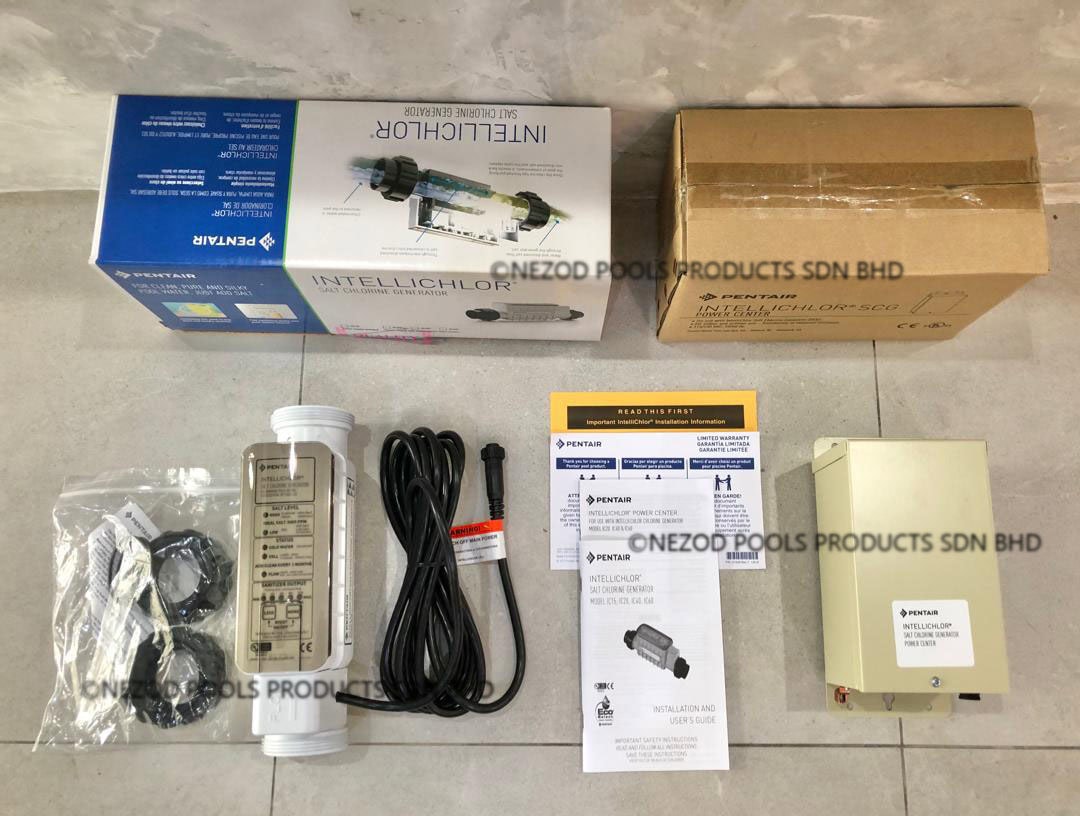

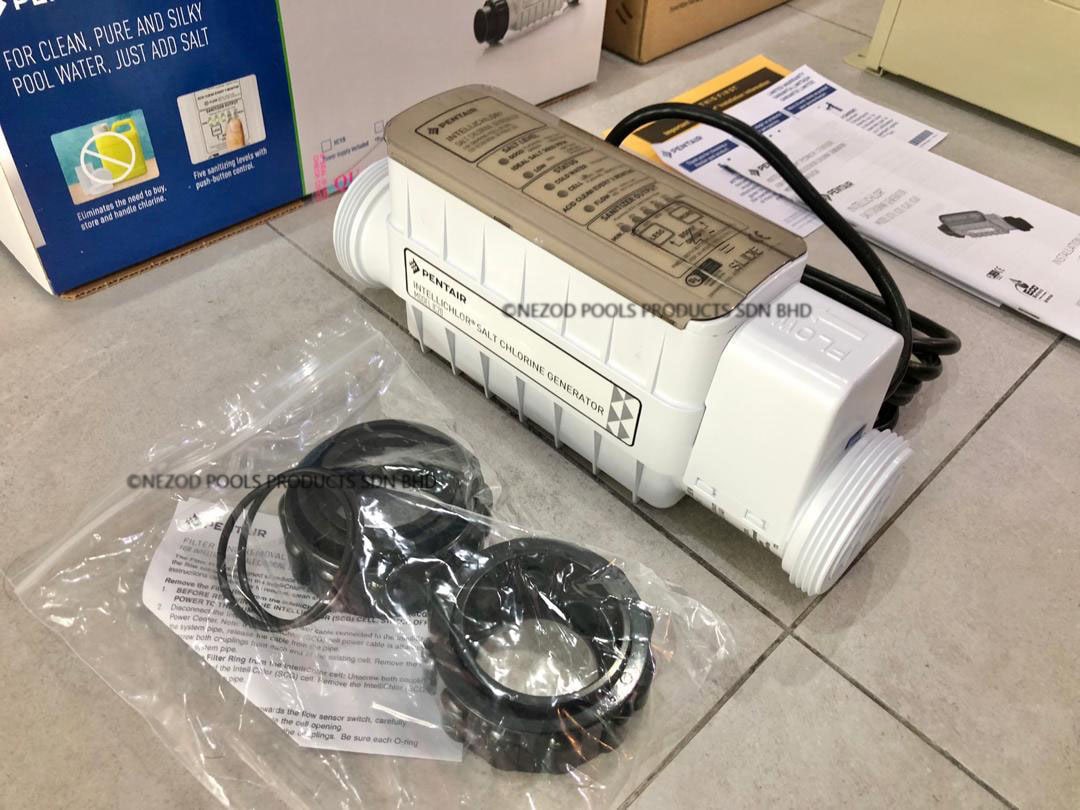

PENTAIR INTELLICHLOR IC20 SALT GENERATOR 13GR/HR W/ POWER CENTER – SELF CLEANING
TRANSFORM YOUR POOL WITH ORDINARY TABLE SALT (SELF CLEANING)
ONLY REQUIRES HALF OF SALT DOSAGE COMPARED TO OTHER SALT SYSTEMS

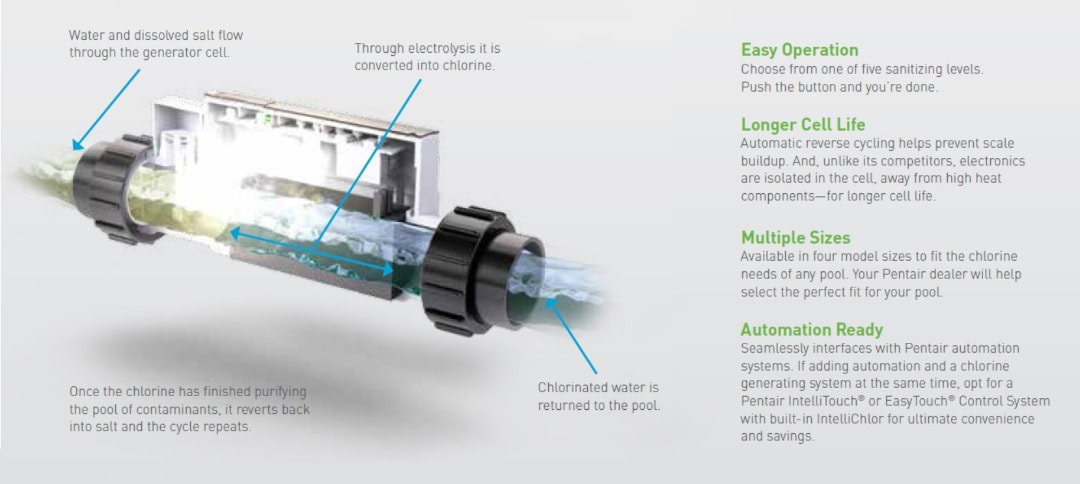

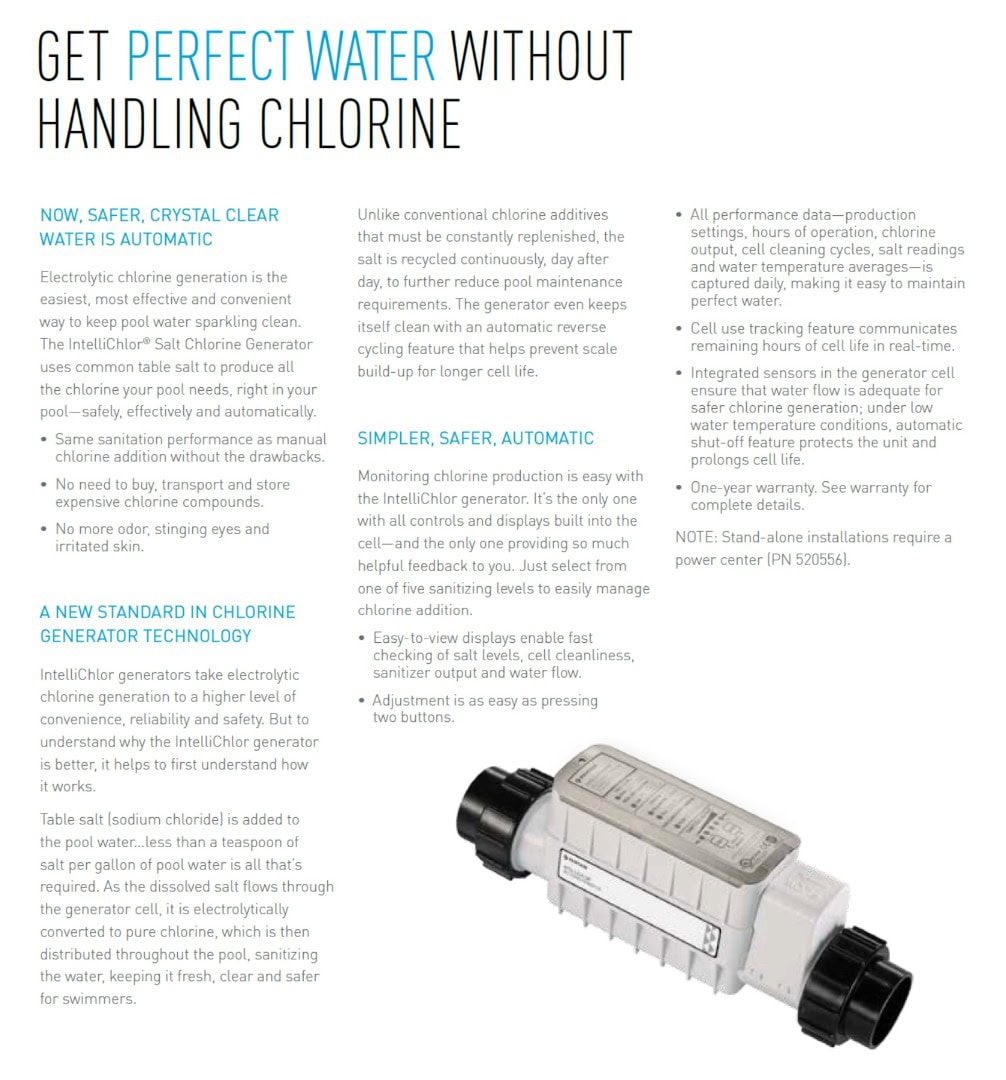

Electrolytic chlorine generation is the easiest, most effective and convenient way to keep pool water sparkling clean. The IntelliChlor® Salt Chlorine Generator uses common table salt to produce all the chlorine your pool needs, right in your pool – safely, effectively and automatically.

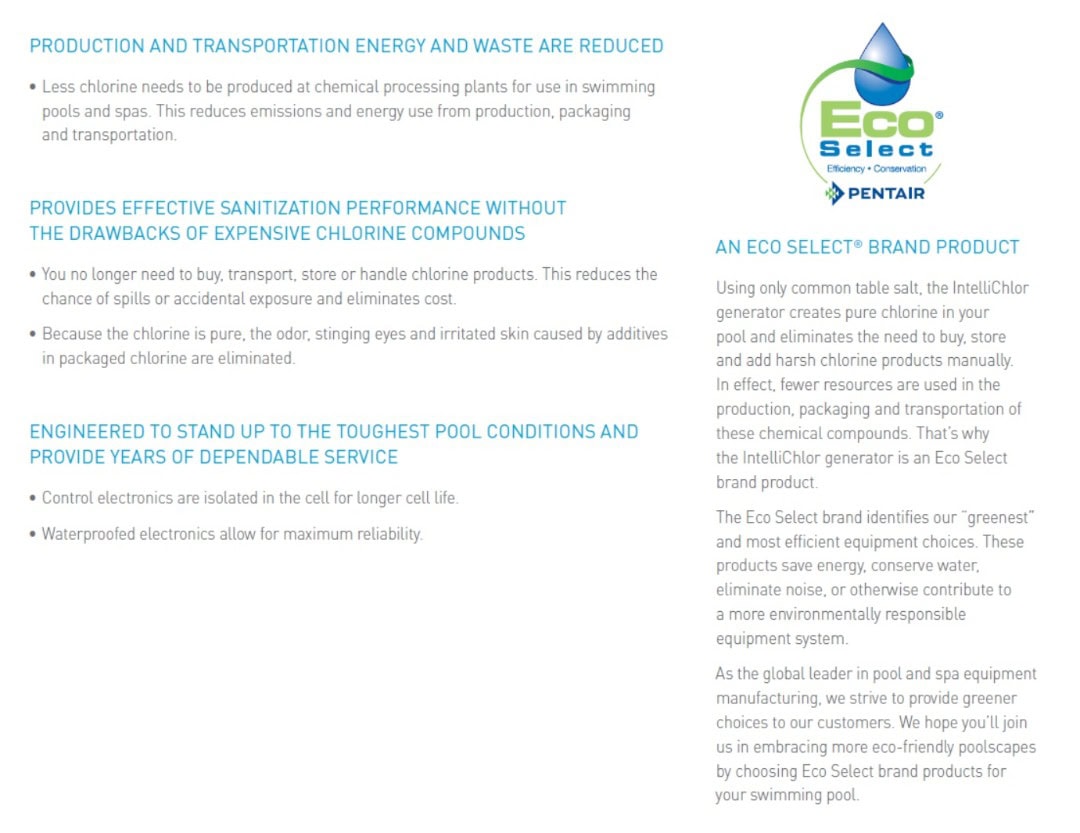

• Same sanitation performance as manual chlorine addition without the drawbacks.
• No need to buy, transport and store expensive chlorine compounds.
• No more odor, stinging eyes and irritated skin.
1) Chlorine Output : 13grams / hour. [High Efficiency]
2) Recommend for Pool : 75.71m³ water volume (20,000 USgallon).
3) Salinity (Total Dissolved Solids, TDS) : 5000ppm.
4) Self-Cleaning : Yes, Reverse Polarity.
5) Recommend Cell Cleaning : Clean every 4 to 5 months.

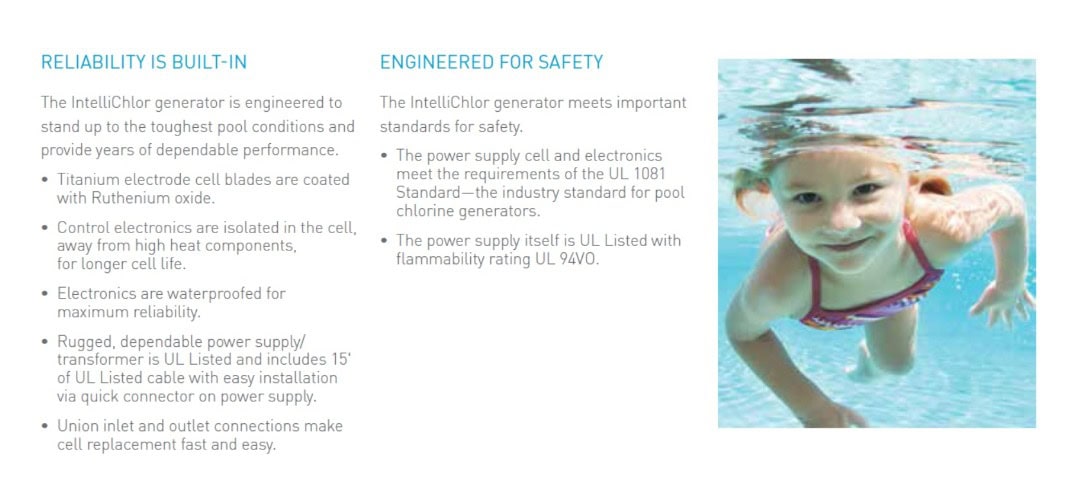

6) Anode material : Titanium electrode cell blades coated w/ Ruthenium oxide.
7) Cooling : Convectional (air flows through unit opening).

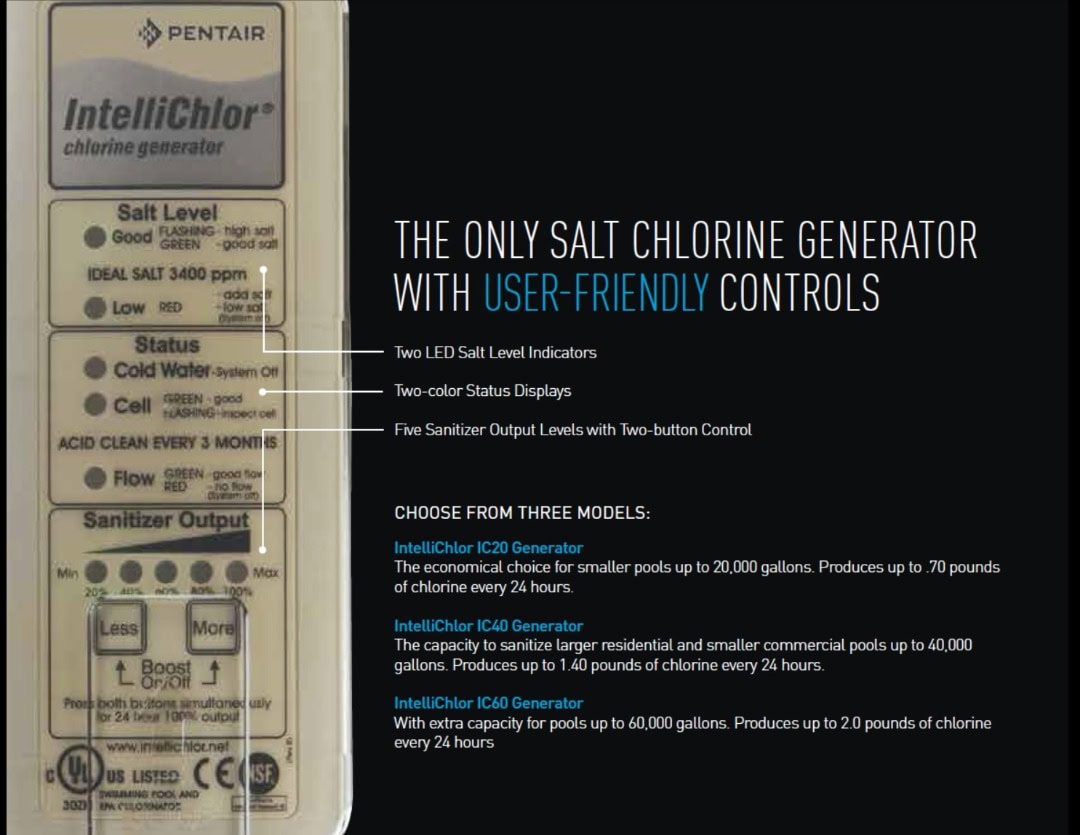

8) Reading : Non digital, simple LED display indication and press buttons.
9) Time Switch : No built-in timer.
10) IP Rating : IP 24 (outdoor applicable).
11)Salt Cell Chamber size : 400mm X130mm (thk)
12)Transformer Dimension : 270mm X 130mm X 110mm (thk)
a) Easy-to-view displays enable fast checking of salt levels, cell cleanliness, sanitizer output and water flow.
b) Adjustment is as easy as pressing two buttons.
c) Table salt (sodium chloride) is added to the pool water less than a teaspoon of
salt per gallon of pool water is all that’s required.”
d) Control electronics isolated in cell, away from high heat components, for longer cell life.
e) Electronics are waterproofed for maximum reliability.
f) Union inlet and outlet connections make cell replacement fast and easy.
g) UL Listed and NSF Approved.
