COMPACT AND LIGHTWEIGHT
For residential and semi-commercial pools

Specification

1) Tank Material : UV Resistant Plastic
2) Max operating pressure : 36 psi / 2.5 bar.
3) Max flow rate allow : 22.90m³/hr (100.00USgpm)
4) *CF100 filter area : 9.40m² (100sqft)
*Based on cartridge filtration rate of 0.375 USgpm/ft².
5) Max temperature : 40°C (122°F).
6) 2.0″ (50mmØ) plumbing connection for maximum flow.

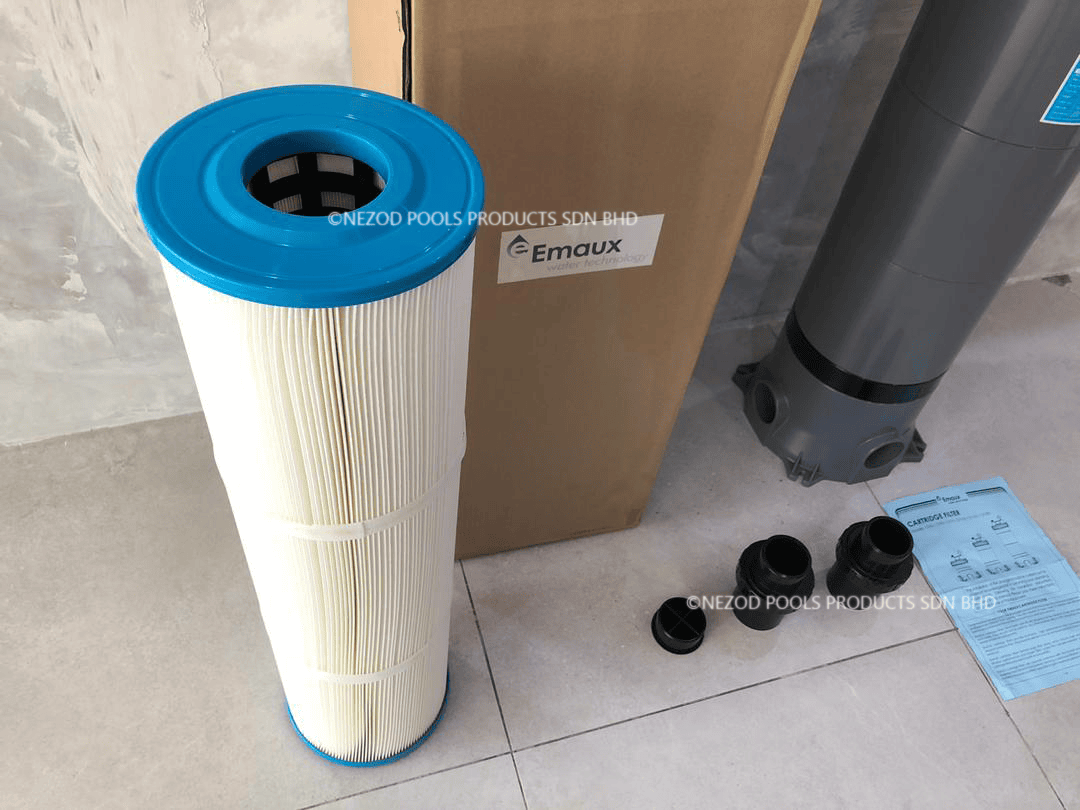

7) Number of cartridge media : 1no. 183mmØ x 724.5mm(H).

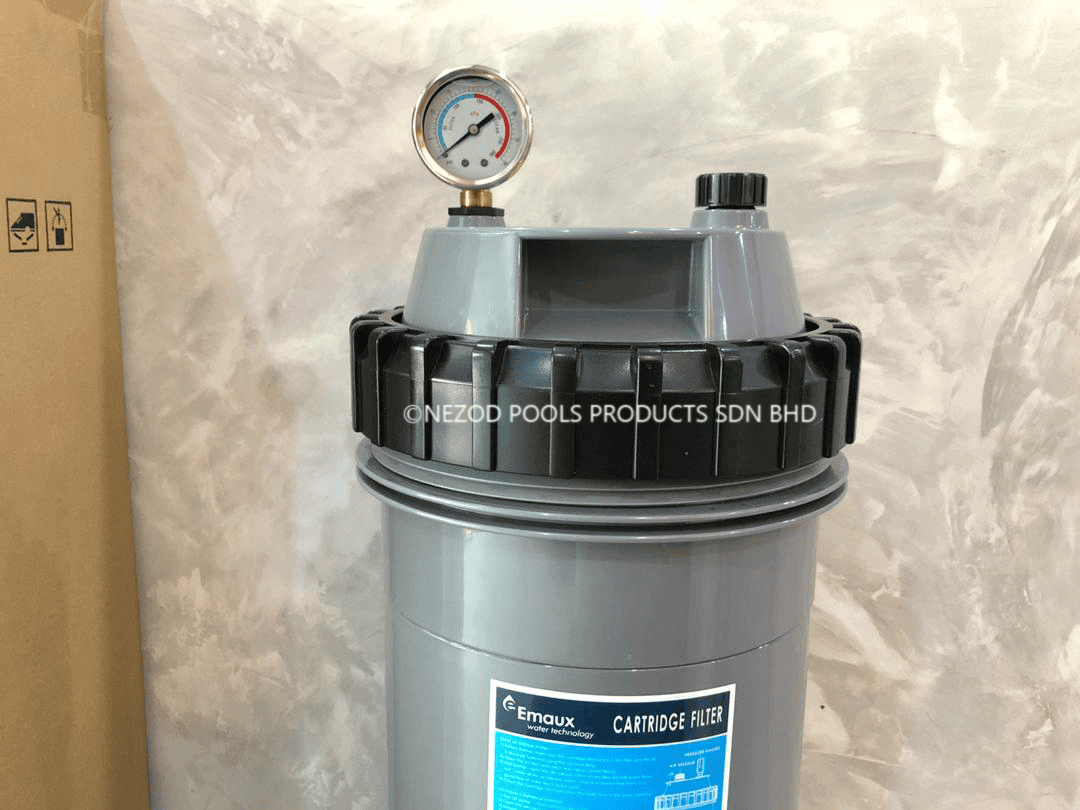

8) High-quality oil-filled pressure gauge for easy inspection of the operation pressure.

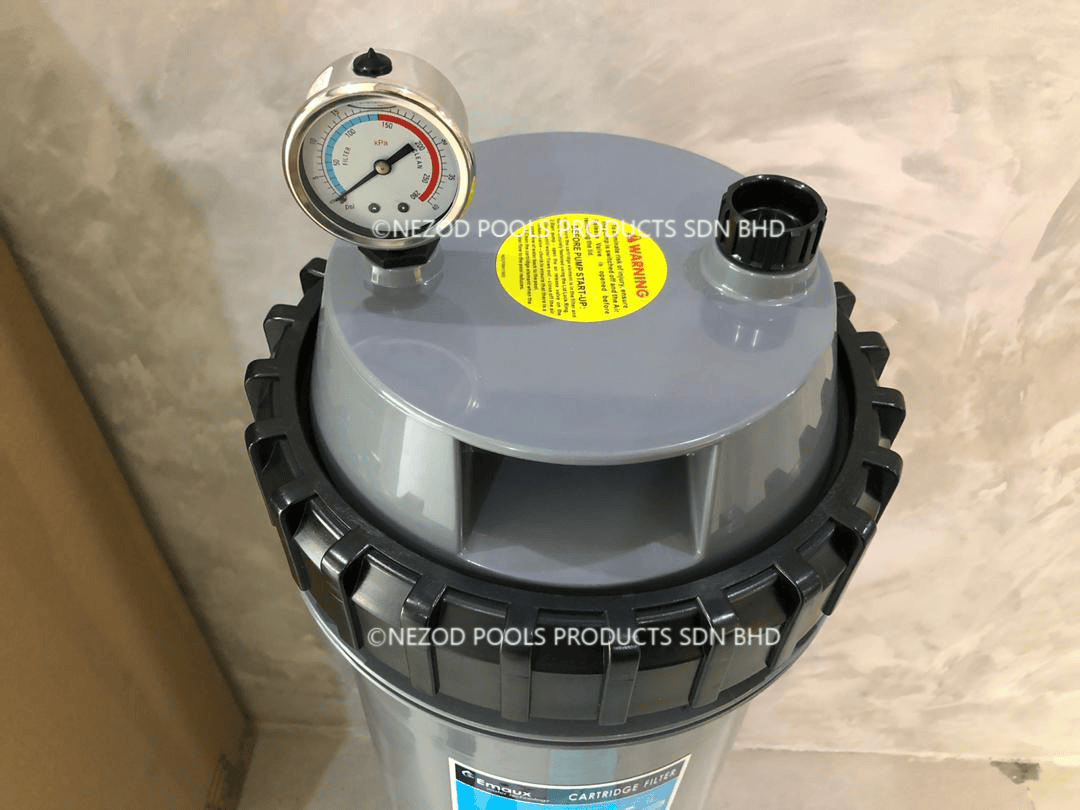

9) Screw type air bleeder for easy removal of trapped air inside the filter tank.
10) Heavy duty ring-lock lid allows easy cleaning and replacement of the cartridge element.
11) Easy access 2.0″ (50mmØ) drain cap.
12) Diameter of the filter unit : 225mmØ.
13) Height of the filter unit : 985mm.
14) Clearance to remove Filter Top : 57″ (1450mm) height from floor level.
15) Filtration Level : 20µ (better than sand filter level appro. 100µ)
