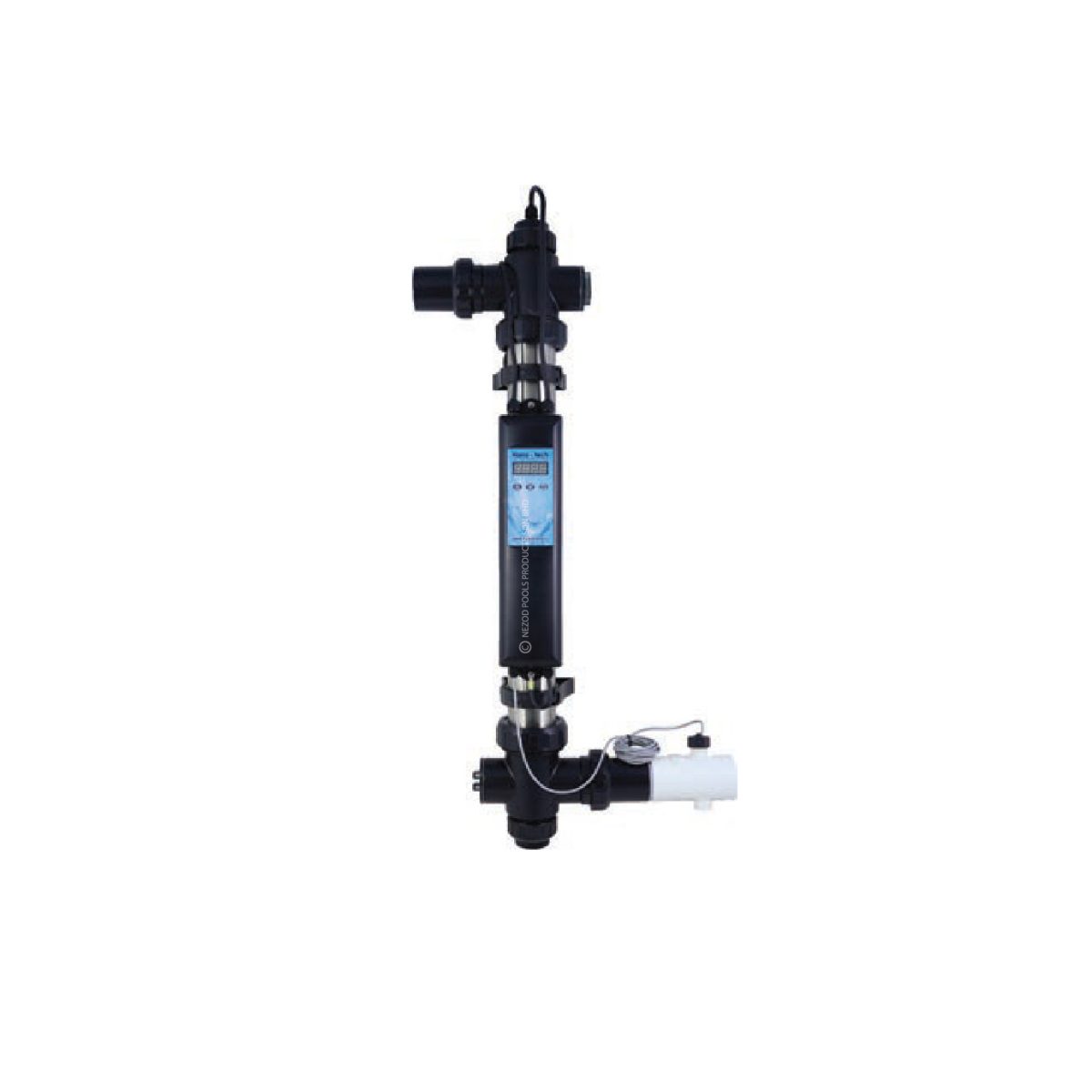

Nano Tech UV-C With Amalgam Lamps And Flow Switch
The amalgam lamps sit between low-pressure and medium-pressure UV applications, combining high efficiency with relatively high power densities operating in a broad temperature range.
The amalgam version includes a flow switch which will cut off the lamp power to protect the system from overheating when the water flow is lower than required.
By applying a special coating technology, we are able to guarantee a maintenance of 85% after 12,000 hours operating in a broad temperature range.
Optional Timer version is included.
Main Applications
-
Municipal drinking water treatment systems.
-
Municipal wastewater treatment systems.
-
Process water treatment units.
-
Swimming pool treatment systems.
These UV systems combine all the benefits listed above in a very compact design. Another advantage is that the lamps are single ended and can be easily replaced.
-Crystal clear disinfected water.
-Protects your pool against pathogenic organism and algae.
-316L stainless steel housing, with mirror polished interior.
-Environmental friendly
NanoTech UV-C ADVANTAGES
- USER-FRIENDLY
Easy installation and maintenance. The optional timer can control the running operation hours
2. STRONG AND DURABLE
Robust housing in AISI 316 Stainless Steel for anti- corrosion long life. The professional-quality UV lamp has a long lifetime of 12,000 hours.
3. HIGH EFFICIENCY
The mirror-polished interior of the housing increases the UV reflection rate and thus enhances the work efficiency by up to 35%.
4. HIGH TRANSMISSION
High-quality quartz sleeve ensures nearly 100% transmission of UV-C at 254nm. It offers protection against air and water flow, breakage, and temperature fluctuations.
5. ENVIRONMENTAL-FRIENDLY
It reduces the chlorine consumption of up to 70%. Also water renewal is reduced due to fewer by-products formed.
6. BETTER PROTECTION
The disinfected water is free of unpleasant smells and does not irritate the eyes, because of the significant reduction the number of chloramines. No risk of allergies, and your pool is protected against pathogenic organisms and algae.
Advantages of using UV-C for water disinfection
At a wavelength of 253.7nm, UV-C light is a very powerful germicide. It deactivates the DNA of bacteria, viruses and other pathogens, destroying their ability to multiply and cause disease.
Ultraviolet technology is a non-chemical approach to pool disinfection. In this method of disinfection, nothing is added which makes this process simple, inexpensive and requiring very low maintenance.
UV-C light is become increasingly favoured by the pool industry for its ability to break down and remove chloramines, which cause eye, skin and nose irritation, and breathing difficulties.
