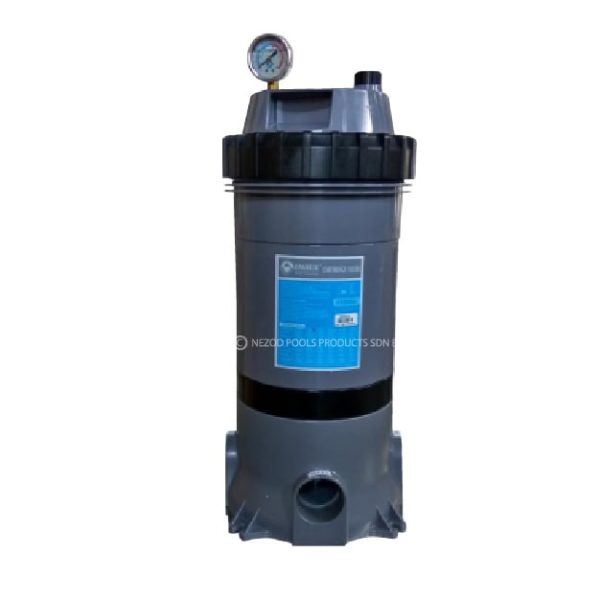

EMAUX CF75 75ft2 Cartridge Filter with 1.5″ union sets

RM1,180.00

COMPACT AND LIGHTWEIGHT
For residential and semi-commercial pools

Specification

1) Tank Material : UV Resistant Plastic
2) Max operating pressure : 36 psi / 2.5 bar.
3) Max flow rate allow : 17.0m³/hr (75.00USgpm)
4) *CF75 filter area : 7.00m² (75sqft)
*Based on cartridge filtration rate of 0.375 USgpm/ft².
5) Max temperature : 40°C (122°F).
6) 1.5″ (40mmØ) plumbing connection for maximum flow.

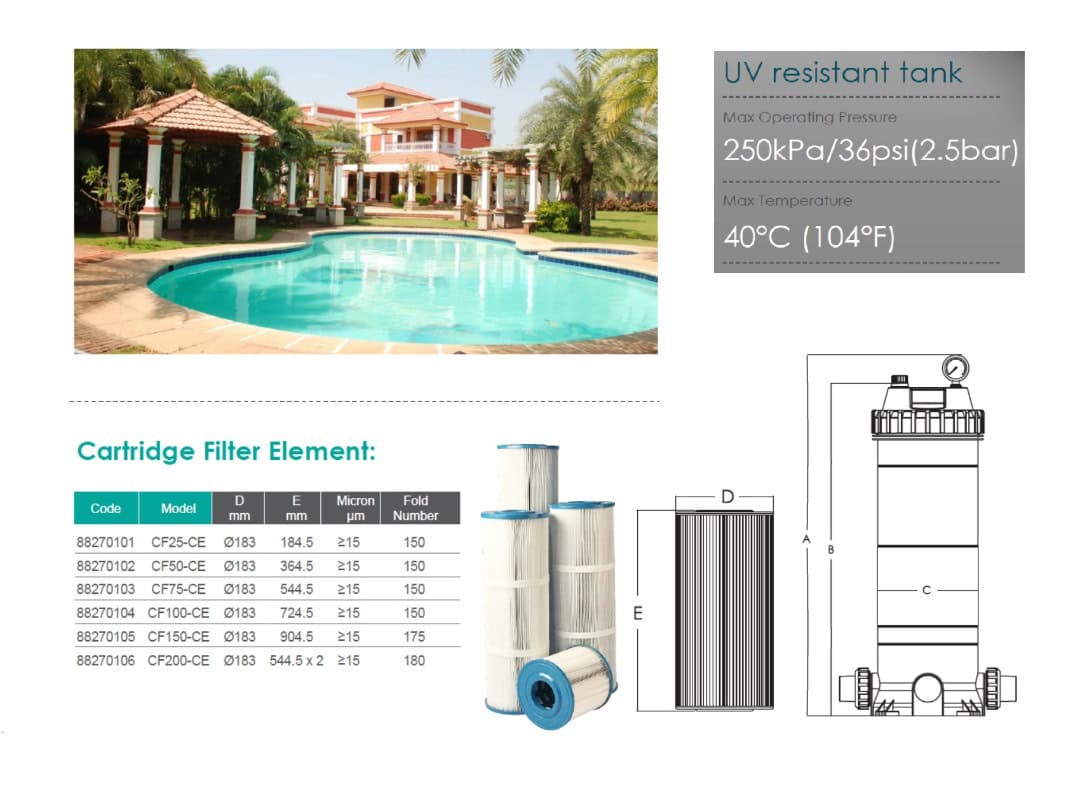

7) Number of cartridge media : 1no. 183mmØ x 544.5mm(H).

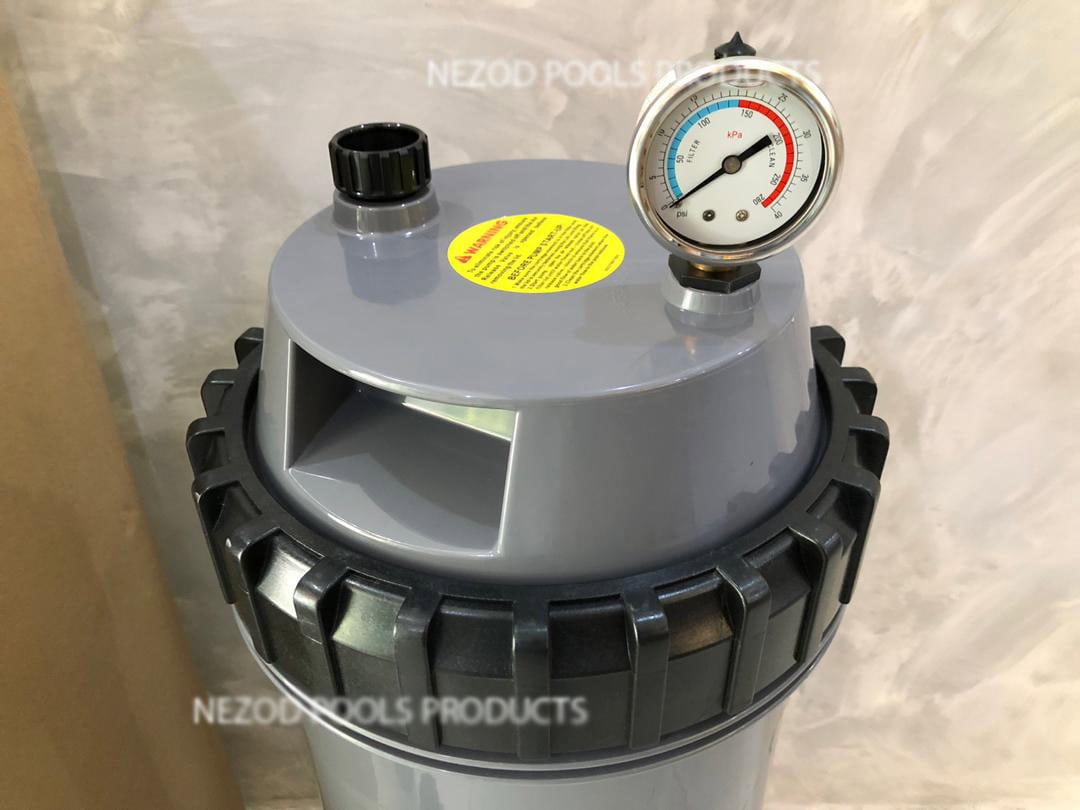

8) High-quality oil-filled pressure gauge for easy inspection of the operation pressure.
9) Screw type air bleeder for easy removal of trapped air inside the filter tank.
10) Heavy duty ring-lock lid allows easy cleaning and replacement of the cartridge element.
11) Easy access 1.5″ (40mmØ) drain cap.
12) Diameter of the filter unit : 225mmØ.
13) Height of the filter unit : 805mm.
14) Clearance to remove Filter Top : 50″ (1250mm) height from floor level.
15) Filtration Level : 20µ (better than sand filter level appro. 100µ)

SKU: CFEM.CF75 Category: Tag:

  • Description

    Product Description

    Product Features

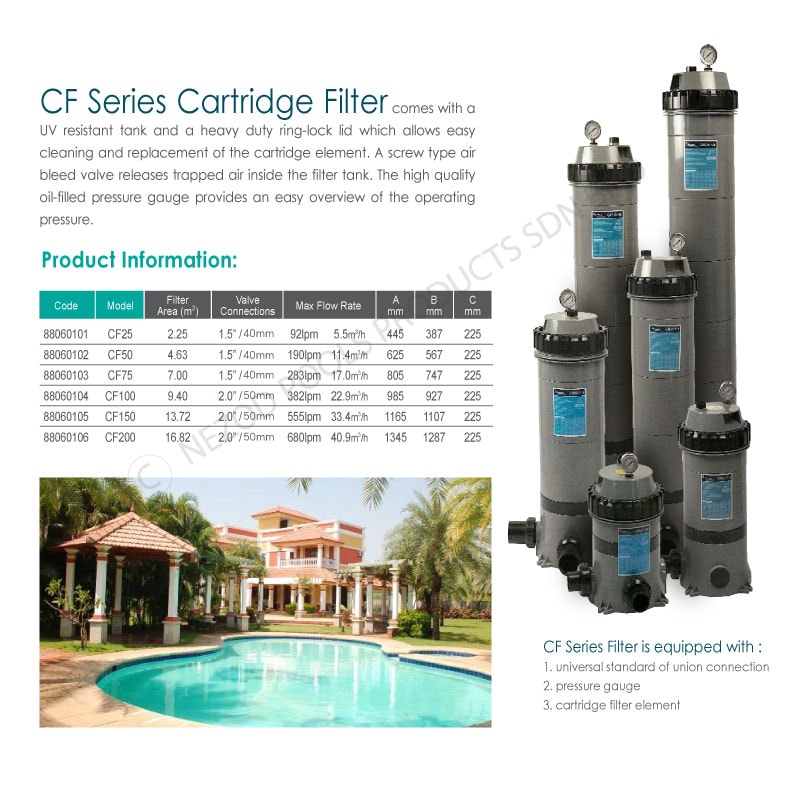

    The CF Series filters come with a UV resistant tank and a heavy duty ring-lock lid which allows easy cleaning and replacement of the cartridge element. Also there is a screw type air bleeder for easy removal of trapped air inside the filter tank. High quality oil-filled pressure gauge is provided for easy inspection of the operation pressure.
