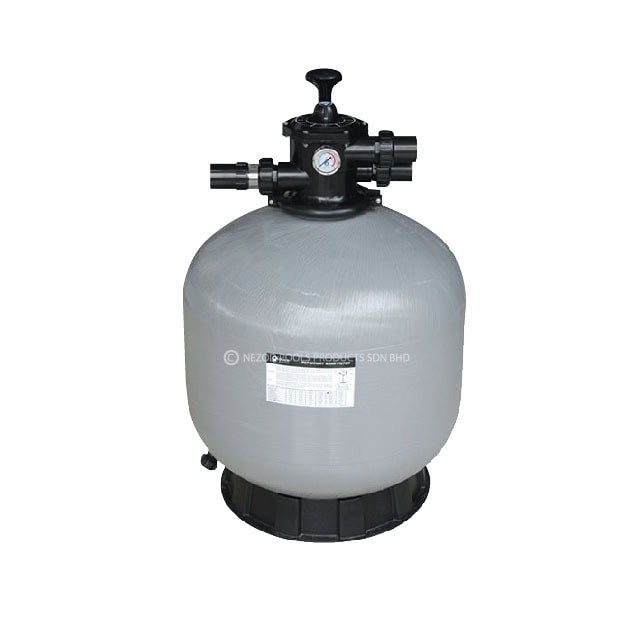

EMAUX V1200C FIBERGLASS TOP MOUNT SAND FILTER 48″ DIA 2.5″ MPV -1.13m2
HEAVY DUTY AND INNOVATIVE DESIGN
For commercial pools

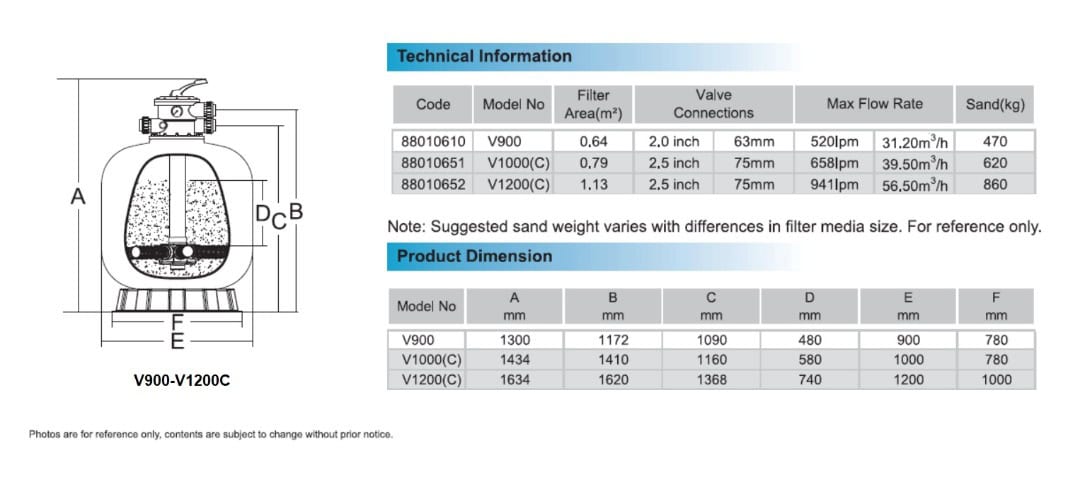

1) Tank Material : Fiberglass.
2) Multiport valve position : Top mounted.
3) Max operating pressure : 36 psi / 2.5 bar.
4) Max flow rate allow : 56.50m³/hr (248.55USgpm)
5) Filter area : 1.13m² (12.16sqft)
6) Max temperature : 43°C (109°F).
7) Universal standard of union connection is provided.
8) Pipe Joint Connection : 65mmØ.
9) Suggested size of media : 0.5-0.8mm. (860kg)
10) ABS lateral and pressure gauge provided.
11) Equipped with 6-way clamp style multiport valve.

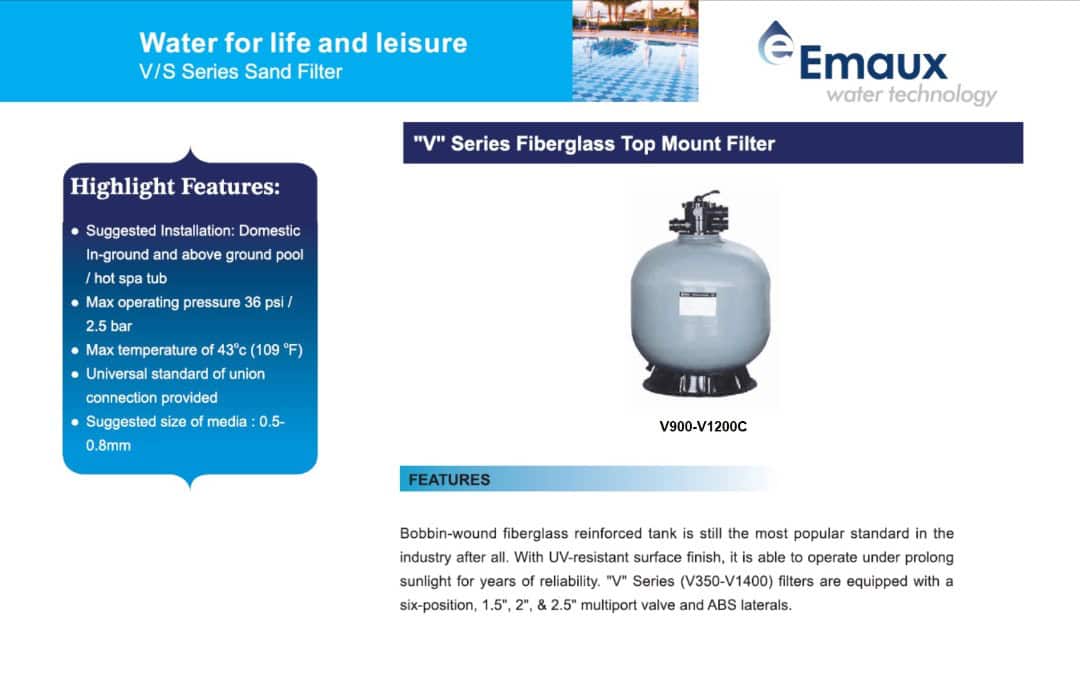

Commercial grade bobbin-wound fiberglass reinforced tank is still the most popular standard in the industry after all. With UV-resistant surface finish, it is able to operate under prolong sunlight for years of reliability. “V” Series filters are equipped with a six position multiport valve and ABS laterals.
• Unique one-piece clamp with screw-type lock designed to simplify installation and allow tool-free servicing.
• Equipped with multiport valve with 6-way functions
• Easy-to-read pressure gauge for easy inspection
