EMAUX Swimming Pool Pump with Filter Combo Set

RM2,050.00

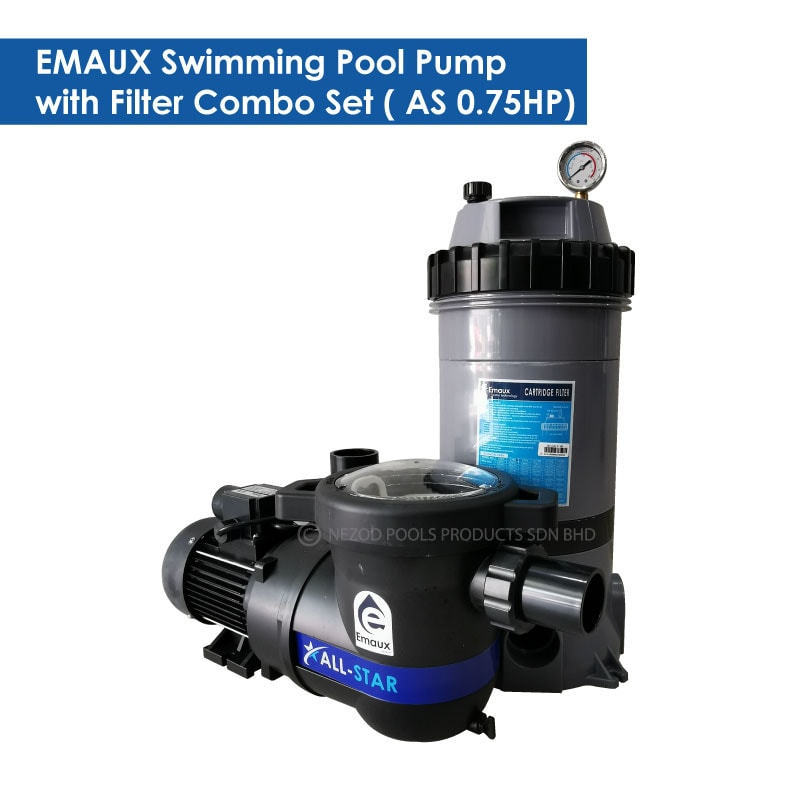

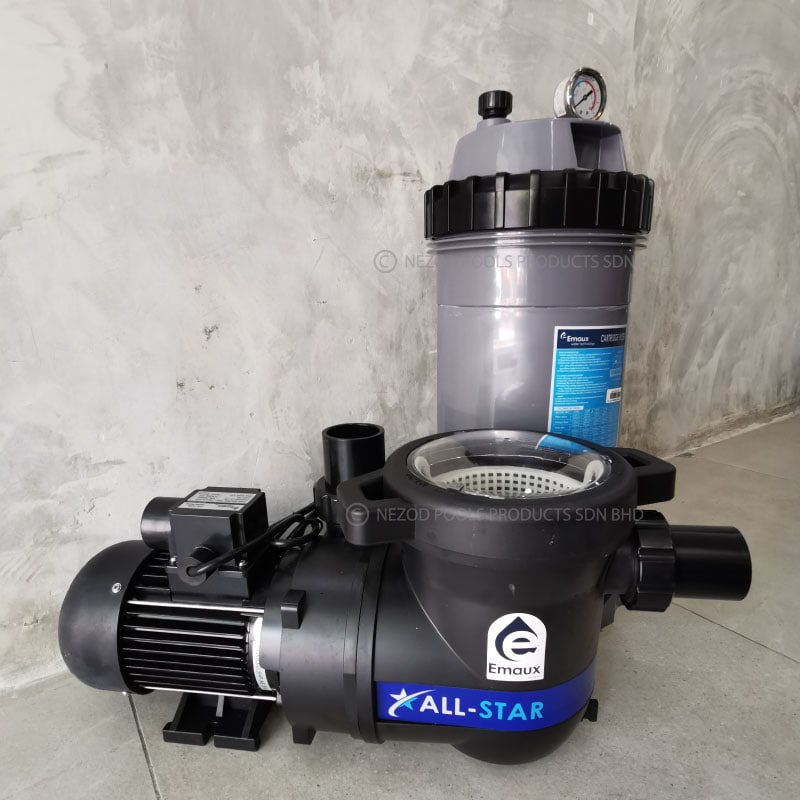

0.75 HP AS Series Pump + CF50 = RM 2,050

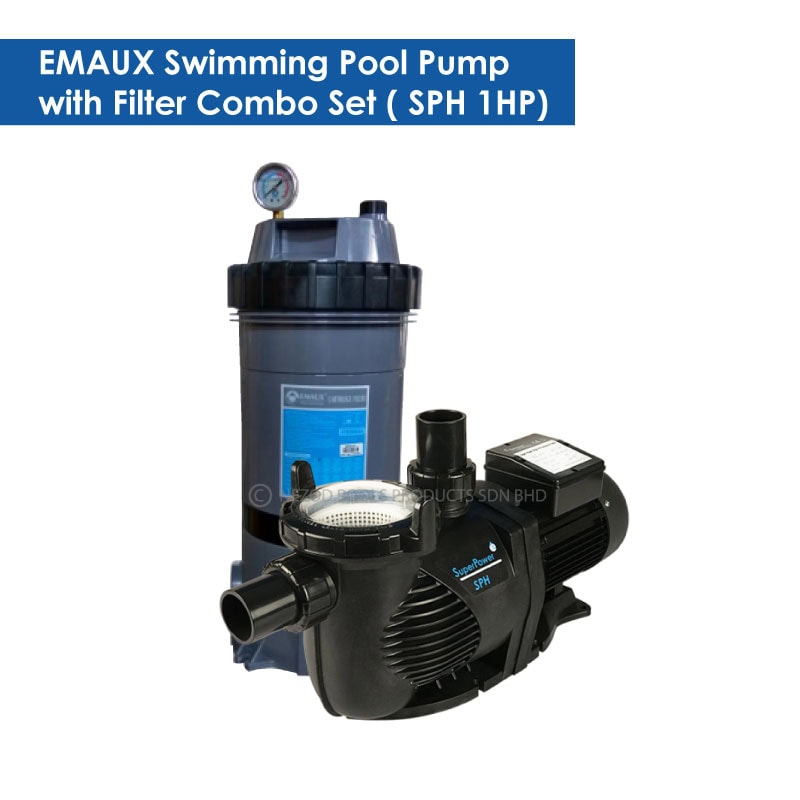

1 HP SPH Series Pump + CF50 = RM 2,450

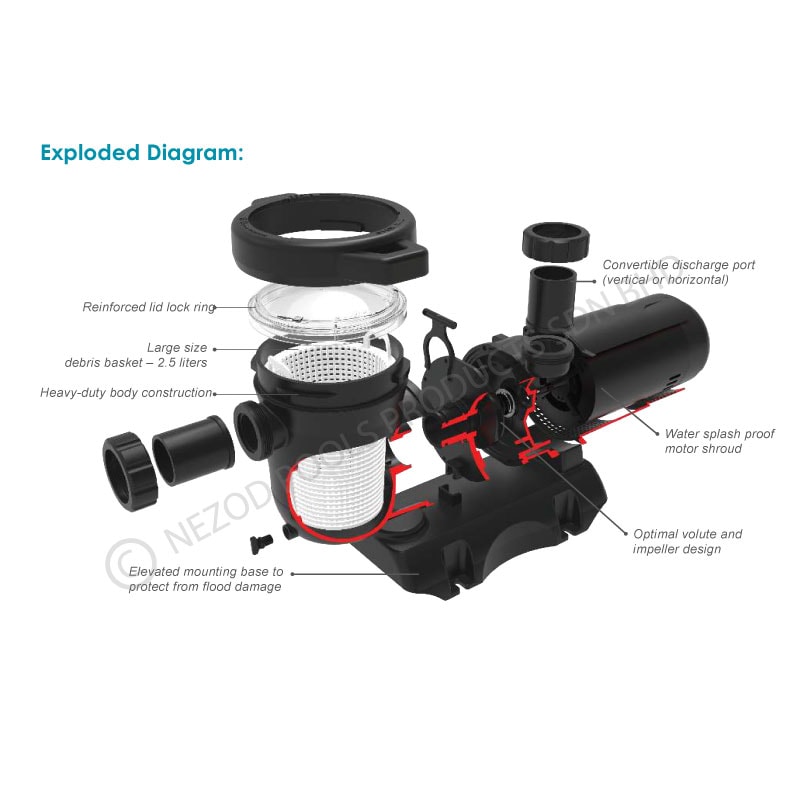

Emaux Pump Features
Specially designed as  a superior pump for above-ground pools. Heavy duty construction  and advanced engineering deliver high flow performance and reliability .It offers a powerful, quiet, and a long operation lifespan.

1)  All components are molded in corrosion-proof reinforced thermoplastic for superior strength and reliability.
2) Easy access discharge port allows conversion from vertical to horizontal discharge orientation.
3) 1.5” PVC pipe union for quick inlet/outlet hose connection.

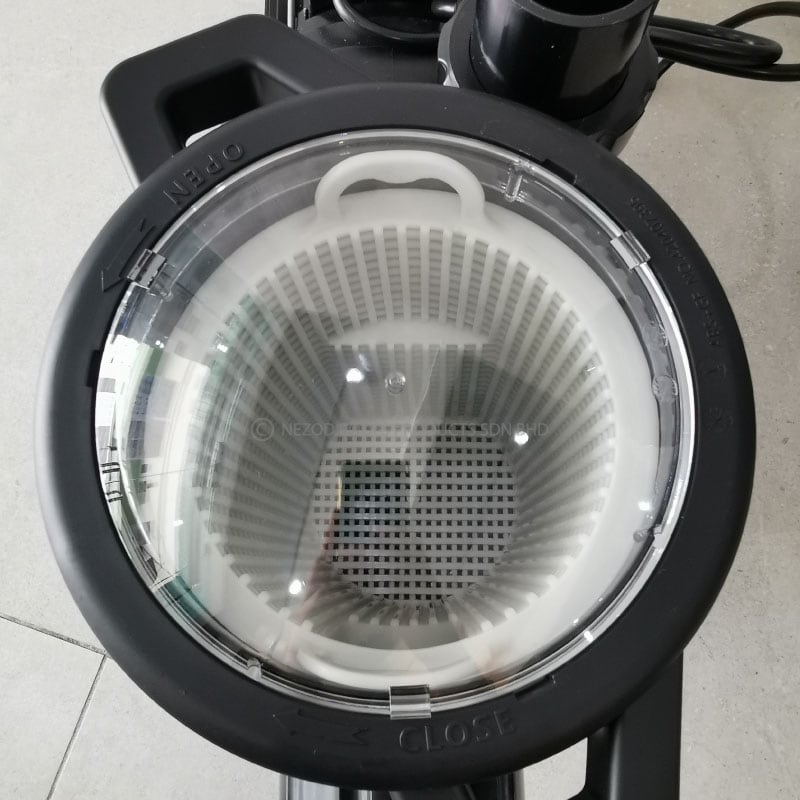

4) Large debris basket with see-through lid reduces cleaning frequency. Twist-Lock lid design enables hassle-free access to the basket.
5) Optimal volute and impeller design provides an excellent hydraulic performance.
6) Suitable for in-ground pools: self-priming vertical lift up to 5ft (1.5 metres).
7) Super quiet operation especially for dual-speed models.
8) Heavy duty high performance motor with automatic thermal overload protection.

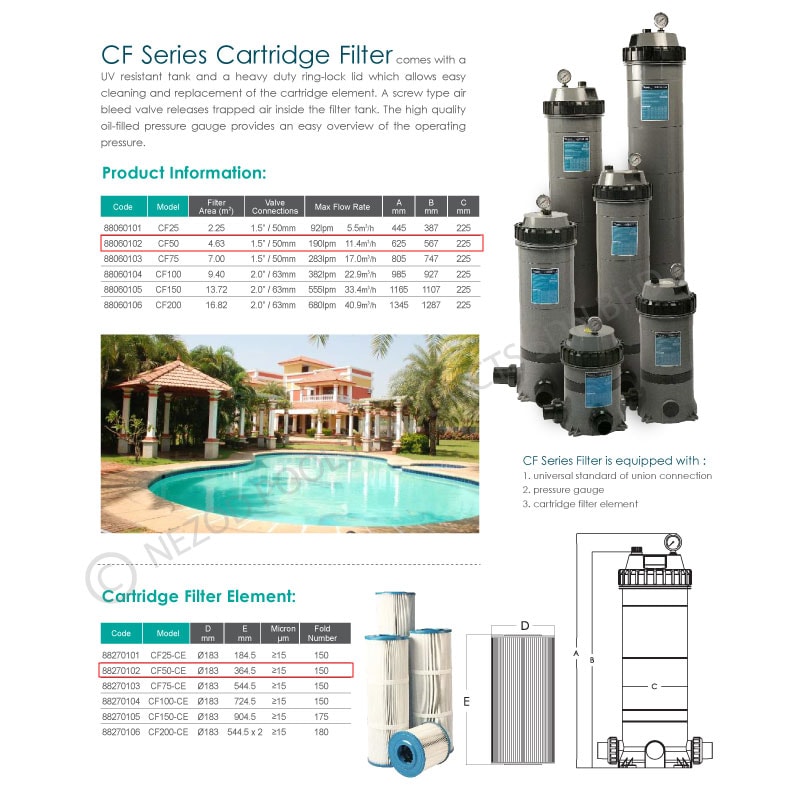

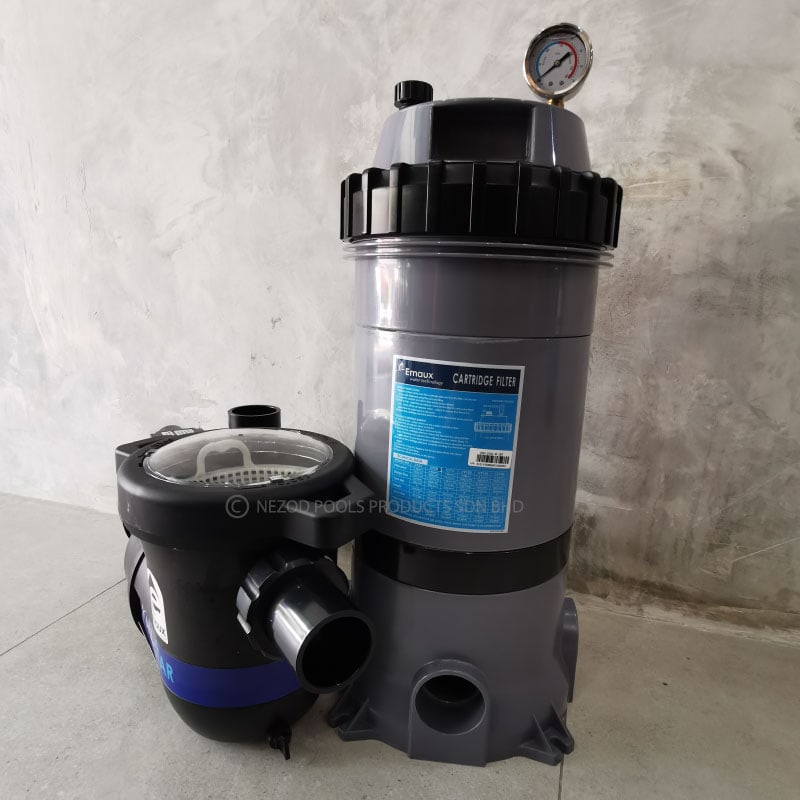

CF Series filters Features

The CF Series filters come with a UV resistant tank and a heavy duty ring-lock lid which allows easy cleaning and replacement of the cartridge element. Also there is a screw type air bleeder for easy removal of trapped air inside the filter tank. High quality oil-filled pressure gauge is provided for easy inspection of the operation pressure.

1) Tank Material : UV Resistant Plastic
2) Max operating pressure : 36 psi / 2.5 bar.
3) Max flow rate allow : 11.4m³/hr (50.00USgpm)
4) *CF50 filter area : 4.63m² (50sqft)
*Based on cartridge filtration rate of 0.375 USgpm/ft².
5) Max temperature : 40°C (122°F).
6) 2″ (40mmØ) plumbing connection for maximum flow.
7) Number of cartridge media : 1nos. 183mmØ x 364.5mm(H).
8) High-quality oil-filled pressure gauge for easy inspection of the operation pressure.
9) Screw type air bleeder for easy removal of trapped air inside the filter tank.
10) Heavy duty ring-lock lid allows easy cleaning and replacement of the cartridge element.
11) Easy access 1.5″ (40mmØ) drain cap.
12) Diameter of the filter unit : 225mmØ.
13) Height of the filter unit : 625mm.
14) Clearance to remove Filter Top : 35″ (890mm) height from floor level.
15) Filtration Level : 20µ (better than sand filter level appro. 100µ)

SKU: AS1HP+CF50 Category: Tag:
  • Description

    Product Description

    Emaux 1hp Pump Features
    Specially designed as  a superior pump for above-ground pools. Heavy duty construction  and advanced engineering deliver high flow performance and reliability .It offers a powerful, quiet, and a long operation lifespan.

    1)  All components are molded in corrosion-proof reinforced thermoplastic for superior strength and reliability.
    2) Easy access discharge port allows conversion from vertical to horizontal discharge orientation.
    3) 1.5” PVC pipe union for quick inlet/outlet hose connection.
    4) Large debris basket with see-through lid reduces cleaning frequency. Twist-Lock lid design enables hassle-free access to the basket.
    5) Optimal volute and impeller design provides an excellent hydraulic performance.
    6) Suitable for in-ground pools: self-priming vertical lift up to 5ft (1.5 metres).
    7) Super quiet operation especially for dual-speed models.
    8) Heavy duty high performance motor with automatic thermal overload protection.

    CF Series filters Features

    The CF Series filters come with a UV resistant tank and a heavy duty ring-lock lid which allows easy cleaning and replacement of the cartridge element. Also there is a screw type air bleeder for easy removal of trapped air inside the filter tank. High quality oil-filled pressure gauge is provided for easy inspection of the operation pressure.

    1) Tank Material : UV Resistant Plastic
    2) Max operating pressure : 36 psi / 2.5 bar.
    3) Max flow rate allow : 11.4m³/hr (50.00USgpm)
    4) *CF50 filter area : 4.63m² (50sqft)
    *Based on cartridge filtration rate of 0.375 USgpm/ft².
    5) Max temperature : 40°C (122°F).
    6) 2″ (40mmØ) plumbing connection for maximum flow.
    7) Number of cartridge media : 1nos. 183mmØ x 364.5mm(H).
    8) High-quality oil-filled pressure gauge for easy inspection of the operation pressure.
    9) Screw type air bleeder for easy removal of trapped air inside the filter tank.
    10) Heavy duty ring-lock lid allows easy cleaning and replacement of the cartridge element.
    11) Easy access 1.5″ (40mmØ) drain cap.
    12) Diameter of the filter unit : 225mmØ.
    13) Height of the filter unit : 625mm.
    14) Clearance to remove Filter Top : 35″ (890mm) height from floor level.
    15) Filtration Level : 20µ (better than sand filter level appro. 100µ)
